Key Features
Dual-AGV Tandem Control System
- Master-slave synchronization ensures both AGVs move at the same speed and direction.
- Wireless communication (e.g., 5G/Wi-Fi) for real-time coordination.
- Customizable synchronization logic (e.g., adaptive speed control for uneven loads).
Heavy-Duty Lifting Mechanism
- Hydraulic or electric scissor lift for stable vertical movement.
- Custom lift height & stroke (adjustable based on workstation requirements).
- Optional tilting mechanism for inclined loading/unloading.
Robust Chassis & Load Distribution
- Reinforced steel frame with multi-wheel drive (omni-directional or differential steering).
- Customizable wheel configurations (e.g., additional stabilizers for extra-long loads).
- Modular design for easy length/width adjustments.
Advanced Navigation & Guidance
- Laser SLAM (for flexible path planning) or magnetic tape (for fixed routes).
- Optional hybrid navigation (e.g., vision + LiDAR for complex environments).
- Customizable path optimization (e.g., priority lanes, dynamic rerouting).
Battery & Power Management
- High-capacity lithium batteries (supporting 8+ hours of continuous operation).
- Fast charging/swappable battery options (custom duty cycle solutions).
- Solar-powered variants for sustainable operations (upon request).
Safety & Compliance Features
- Adjustable safety zones (laser scanners with programmable detection ranges).
- Customizable alarms & warning systems (e.g., beacon lights, voice alerts).
- ATEX/Explosion-proof versions for hazardous environments (e.g., oil & gas).
Payload & Attachment Customization
- Specialized Attchments (clamps /rollers /conveyors) for unique load types.
- Expandable platform extensions for extra-long cargo.
- Multi-functional attachments (e.g., crane arms, rotating platforms).
Software & Integration Flexibility
- Custom API/PLC interfaces for seamless WMS/MES/ERP integration.
- Fleet management customization (priority scheduling, traffic control).
- Data analytics & reporting (tailored KPIs for operational efficiency).
Dual Vehicle Linkage of 10T Load Backpack AGVs - Product specification
| Technical Parameter | Performance Feature | |||
| Dimensions (mm) | 4500(L)*1800(W)*600(H) | Navigation Type | Magnetic Strip / Color Ribbon / SLAM / GPS | |
| Weight | 3200kgs | Drive Type | 4 sets steering gear | |
| Rated Load | 10T | Control Type | Automatic, Manual, Remote Control | |
| Battery Parameters | Battery Type | Lead Acid/Lithium | Charging Type | Manual + Automatic |
| Battery Capacity | 48V/200Ah | Communication Type | Infrared / WIFI | |
| Rated Endurance | 6h | |||
| Charging Time | ≤4h | Human-Machine Interaction | Explosion-proof Touch Screen | |
| Cycle Life | 800-2000 | |||
| Speed | Unloaded | 0~0.8m/s | Travel Directions | Omni-Directional |
| Loaded | 0~0.4m/s | Safety System | Radar Obstacle Avoidance + Safety Bumper + Emergency Stop | |
| Safety Sensing Distance | 0~3m | |||
| Positioning Accuracy | ±10mm | Alarm Type | Alarm + Three-color Light and Sound Indication | |
| Docking Accuracy | ±10mm | |||
| Min. Turning Radius | In-place Rotation | Operating Environment | -10～45°C | |
| Grade Ability | 8-10% | ≤75dB | ||

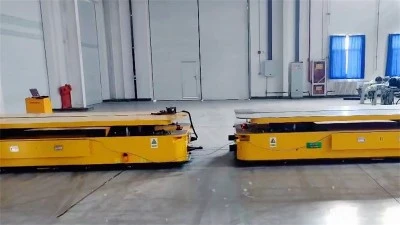

Dual Vehicle Linkage of 10T Load Backpack AGVs - Pictures For Details
Dual Vehicle Linkage of 10T Load Backpack AGVs - scan the code for product video
Main Applications
Aerospace and Heavy Machinery Manufacturing
Scenario: Transportation of aircraft fuselage sections, wing components, or large engine casings.
Application details:
- Two AGVs collaborate to lift and transport 10-ton aircraft wing spars (length: 8–10 meters) between assembly workshops, replacing traditional crane operations to improve precision and reduce floor space occupation.
- In shipbuilding, dual AGVs transport extra long steel plates (weight: 15–20 tons) from storage areas to welding stations, enabling flexible material flow in modular ship construction.
Automotive and Heavy Equipment Production
Scenario: Logistics of large vehicle frames, chassis, or oversized parts.
Application details:
- In truck manufacturing, dual AGVs carry 10-ton truck frames from the stamping workshop to the welding line, with lifting functions for height adjustment to match production line equipment.
- For construction machinery (e.g., excavator booms), dual AGVs ensure stable transportation of extra long components, reducing damage risks during handling.
Energy and Infrastructure Industries
Scenario: Installation and maintenance of power equipment, wind turbines, or nuclear components.
Application details:
- Transportation of 10-ton transformer cores in power plants: dual AGVs navigate through narrow corridors to deliver components to installation sites with centimeter-level precision.
- In wind farms, dual AGVs assist in transporting wind turbine tower sections (length: 15–20 meters) within the plant, improving logistics efficiency for offshore wind equipment.
Warehousing and Heavy Cargo Logistics
Scenario: Storage and retrieval of oversized goods in automated warehouses.
Application details:
- Dual AGVs collaborate to handle 10-ton steel coils or industrial-grade pipes, using lifting functions to stack goods on high racks (height: 5–8 meters), optimizing warehouse space utilization.
- In port logistics, dual AGVs transport ultra-long containers or heavy machinery parts, integrating with cranes for seamless cargo transfer.
Shipbuilding, Rail & Transportation
Scenario: Moving ship hull panels, engines, oversized marine equipment in shipyards; transporting railway tracks, bogies, locomotive parts in maintenance depots.
Application details:
- In shipyards, dual AGVs transport heavy hull panels and engines, ensuring precision and safety during movement and installation.
- In railway depots, they lift and move tracks, bogies, and engine parts, streamlining maintenance workflows and cutting downtime.
