What is an Explosion - proof towing AGV?
An Explosion - proof light - duty towing AGV, also called an Explosion - proof Automated Tow Tractor or Explosion - proof AGV tugger, is a specialized automated guided vehicle designed for hazardous environments.
It features enhanced safety measures, such as explosion - resistant components and sealed enclosures, to prevent ignition sources in areas with flammable gases, vapors, or dust. Ideal for industries like petrochemicals and pharmaceuticals, it can safely tow light - load trailers, transporting materials efficiently while minimizing explosion risks.
key features
Explosion - proof Design
Equipped with specialized explosion - proof components like motors, batteries, and electrical systems, Chenghe's explosion - proof light - duty towing AGV prevents sparks and heat generation, ensuring safe operation in hazardous environments filled with flammable gases, vapors, or dust.
Latent Towing Function
Designed to handle relatively light loads, our explosion - proof AGV tugger can efficiently tow trailers or carts carrying materials weighing within a specific light - duty range, making it suitable for applications where heavy - duty towing isn't required.
Automated Navigation
Utilizes advanced navigation technologies such as magnetic, laser, or visual guidance to move autonomously along pre - defined routes. This automation enables precise and consistent material transportation without the need for manual operation.
Customized services
Can adjust its dimensions to fit specific spaces, customize the load capacity based on the weight of materials to be handled, and select the most suitable navigation method. This flexibility meets the diverse needs of different customers under various working conditions.

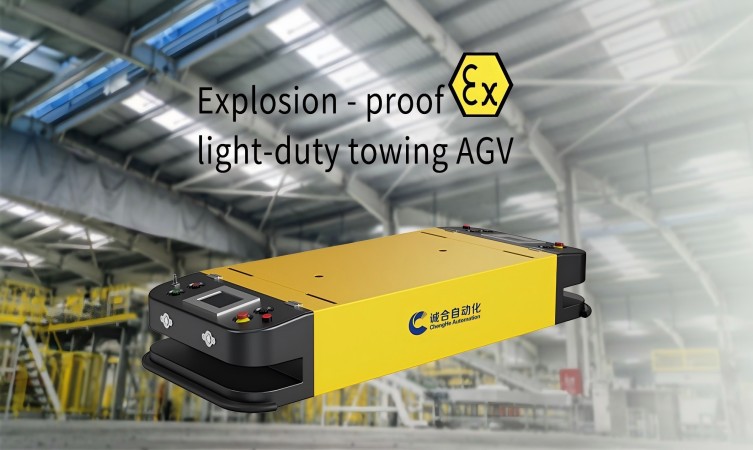

Light Duty Explosion-proof Tugger AGV - Product Description
| Technical Parameters | Performance Features | ||
| Dimensions | 2600mm(L)×800mm(W)×355mm(H) | Navigation Type | Magnetic Strip / Color Ribbon / SLAM / GPS |
| Traction Force | 1500N | Drive Type | Differential Drive |
| Vehicle Weight | 700kgs | Applicable Scenarios | Indoor/Outdoor |
| Drive Power | 3KW | Travel Directions | Forward, Backward, Sideways, Turning |
| Drive Wheel Diameter | 150mm×45mm×4mm | Communication Type | Infrared / WIFI |
| Load Wheel Diameter | 100mm×38mm×4mm | AGV Type | Tugger AGV |
| Lifting Motor Power | 200W*2 | Navigation Accuracy | ±10mm |
| Lifting Stroke | 70mm | Docking Accuracy | ±10mm |
| Travel Speed(unloaded) | 0-40m/min | Rated Endurance | 5h |
| Travel Speed(loaded) | 0-30m/min | Charging Time | 7h |
| Grade Ability | 8-10% | Operating Temperature | -10~45°C |
| Battery Type | Lead-acid Battery | Environmental Humidity | ≤90% |
| Battery Capacity | 48V/50Ah | Operating Noise | ≤80dB |
Main applications

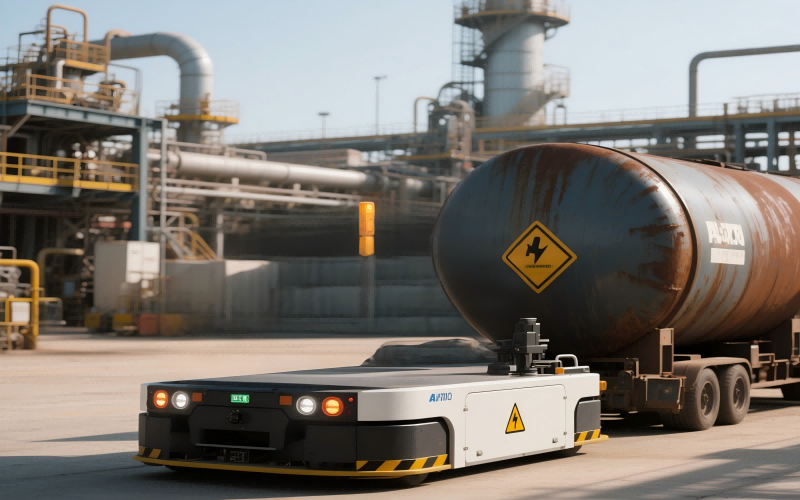

In places such as oil refineries and chemical plants, there are hazardous substances such as flammable and explosive gases and liquids. Explosion-proof light-duty tractors can be used to tow oil tankers, chemical raw material transportation vehicles, as well as to tow various small equipment and material carts within the plant area. This ensures the safe and efficient transportation of materials and the movement of equipment in an explosive hazardous environment.
During the processes of natural gas extraction, storage, and transportation, such as in natural gas filling stations and liquefied natural gas (LNG) plants, explosion-proof light-duty tractors can be used to tow gas filling vehicles and transport LNG storage tanks, etc. They prevent the ignition of natural gas due to sparks generated by vehicles and other factors, thus ensuring the safety of production operations.
In mines such as coal mines and metal mines, there are flammable and explosive gases like gas in the underground areas. Explosion-proof light-duty tractors can be used to tow mine cars underground, transporting coal, ores, equipment, and personnel, etc., providing a safe and reliable traction power for mining and transportation in mines.
In some warehouses storing flammable and explosive items, such as fireworks and firecrackers warehouses and flammable liquid warehouses, explosion-proof light-duty tractors are required for the handling and transportation of goods. They tow the goods from the interior of the warehouse to the loading and unloading areas, ensuring the safety of the warehousing and logistics process.
In military places such as ammunition depots and explosive production workshops, explosion-proof light-duty tractors can be used to tow ammunition transportation vehicles, equipment handling vehicles, etc., ensuring the safety during military production and storage processes and preventing serious damage to personnel and facilities caused by explosion accidents triggered by vehicles.
Light Duty Explosion-proof Tugger AGV - case show
Frequently Asked Questions
What types of automated guided vehicles does Chenghe AGV offer?
+
-
Chenghe AGV offers a wide range of vehicles, including Towing AGV, explosion-proof Towing AGV, Tow Tractor, explosion-proof Tow Tractor, Traction AGV, Automated Guided Cart, transfer cart AGV, tugger AGV, automatic transfer cart, and various types of Automated Guided Cart. Each is designed to meet different industrial needs.
In which industries are Chenghe AGV's explosion-proof models suitable?
+
-
Our explosion-proof Towing AGV and explosion-proof Tow Tractor are ideal for hazardous environments such as chemical plants, oil refineries, and mining operations. These ATEX Certified Explosion-Proof models, like the Class 1 Div 1 Explosion-Proof Towing AGV, ensure safety in volatile conditions.
Can Chenghe AGV provide heavy-duty transportation solutions?
+
-
Absolutely. We offer Heavy - duty Towing AGV, Heavy Duty Tow Tractor, Heavy Traction AGV, and Heavy-Duty Automated Guided Cart, as well as Heavy Load Transfer Cart AGV. These are capable of handling significant payloads, ranging from 1T to 100T+ for efficient material handling.
What are the navigation capabilities of Chenghe AGV's products?
+
-
Our vehicles feature advanced navigation systems. For example, the Laser Guided Towing AGV and Magnetic Navigation AGV Transfer Cart use precise technologies for accurate movement. Additionally, models like the Autonomous Navigation Tow Tractor and AI-Powered Traction AGV offer self - driving and intelligent operation.
How does Chenghe AGV's Automated Guided Cart differ from a transfer cart AGV?
+
-
While both are designed for material transfer, our Automated Guided Cart, also known as AG Cart, can operate with a high degree of autonomy. The transfer cart AGV, or AGV Transfer Cart, often focuses more on heavy - load transfer between specific points, such as Rail - less Transfer Cart AGV for flexible movement.
Are there any specific models for warehouse operations?
+
-
Yes, Chenghe AGV has solutions tailored for warehouses. Our Warehouse AGV, Towing AGV for Material Handling, and Automated Guided Cart for Warehouse are designed to optimize storage and retrieval processes, improving overall logistics efficiency.
Can I get customized AGV solutions from Chenghe AGV?
+
-
Certainly! We provide customized solutions, including Customized Heavy Duty Towing AGV. Whether you need specific payload capacities, navigation types, or functional features like Pallet Towing AGV or Multi-Pallet Tugger AGV, we can meet your requirements.
What are the power sources of Chenghe AGV's vehicles?
+
-
Most of our vehicles, such as the Electric Towing AGV, Electric Tow Tractor, and Battery-Powered Transfer Cart, are powered by electric batteries. This ensures clean operation, low noise, and reliable performance for long - term use.
How does Chenghe AGV ensure product quality and safety?
+
-
Our products adhere to strict international standards. For example, our explosion-proof models are Intrinsically Safe and meet regulations like ATEX. We also conduct thorough testing on all models, from Heavy Duty Traction AGV to small - scale Automated Guided Cart, to ensure quality and reliability.
+
-
Chenghe AGV's shelf - loading AGVs, such as Shelf - loading AGV, Rack - moving AGV, and Automated Shelf Transporter, are mainly used in warehouses. They are responsible for moving and storing goods on shelves. These AGVs can access high - rack storage systems, improving the space utilization of warehouses. They can pick and place items on shelves with high precision, contributing to efficient inventory management. In large - scale warehouse operations, they play a crucial role in reducing manual labor and increasing the speed of warehouse operations, ensuring that goods can be quickly retrieved and stored as needed.
